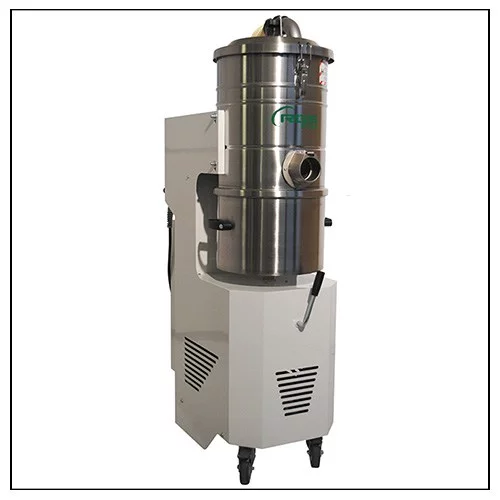

F230 OVERVIEW

Real mobile vacuums with powers ranging of 1,5kW and capacities of 25lt, suitable for sucking substantial quantities of product from process machines, but also used at the end of the work shift for general cleaning of the working area. This model is also available in ATEX version and with a full range of options of easy installation to make them particularly suitable in the pharmaceutical world.

Technical Features

• Side channel blower with asynchronous motor three phase or in option single phase, placed into a protective housing
• Electric cable 10m long with industrial plug 3Ph+ T 16A
• Vacuum meter to control the filter efficiency
• Body of the machine Ø360mm
• Manual filter shaker on top
• Star filter of polyester cat. “L”
• Quick inlet Ø70mm
• Waste bin of 25 l with handles, removable
• Rear castors Ø125mm, front castors Ø100mm with brake
• Painted version with fram, waste bin and filter cahmber Ral 9003 (white)
• X1 version with container in stainless steel
• X2 versione with container and filter chamber in stainless steel
• X3 verssion with waste bin, filter chamber and frame in stainless steel
• Quick installation of alll options
